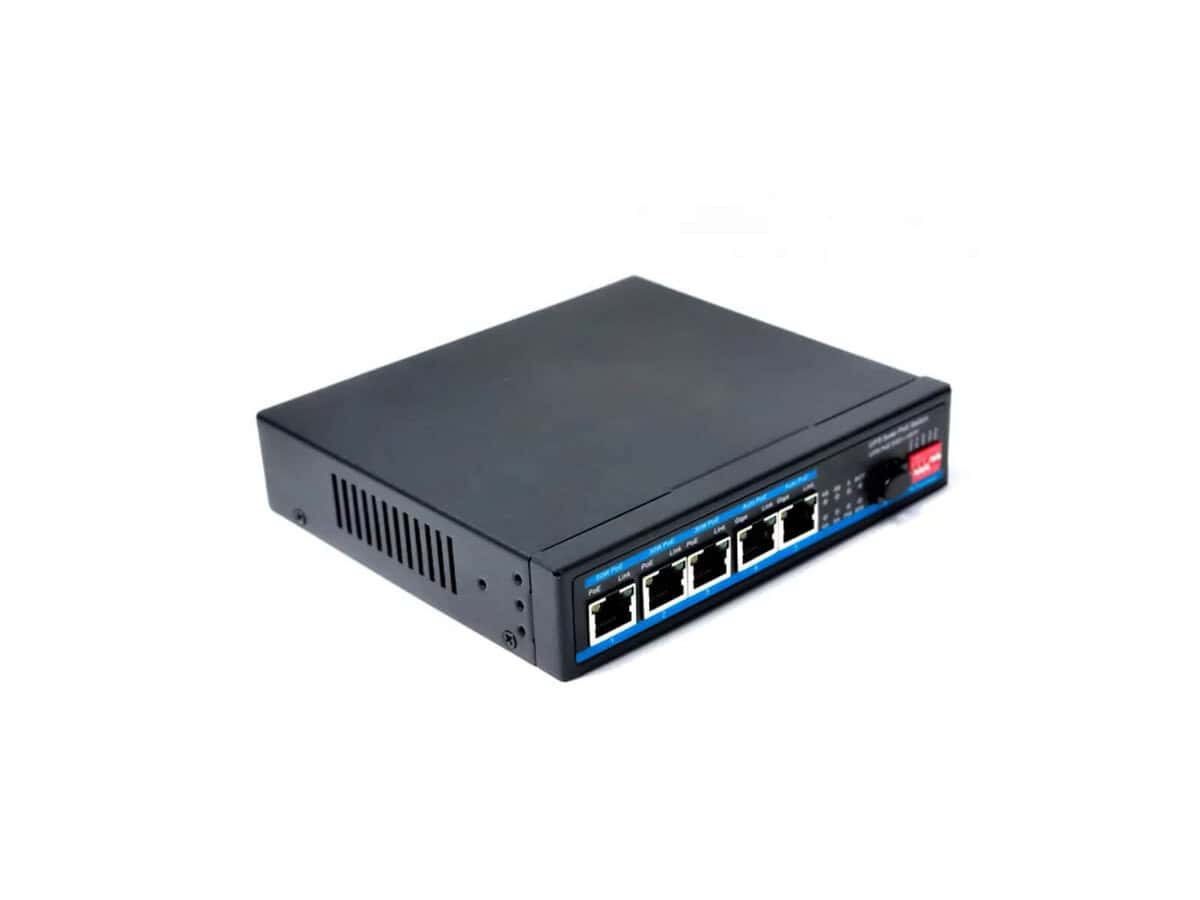

Acconet 5 Port Gigabit MPPT Solar POE Switch

Port:
5x 10/100/1000Mbps RJ45 ports
1x 1000M SFP
PoE Port:
Port 1: AI HiPoE MAX 60W output
Port 2-3: IEEE802.3af/at MAX 30W output
Port 4-5: AUTO AI PoE;48V/ 24V POE auto output MAX25W
Switch Function
1: Fiber Watchdog switch.
2: VLAN disconnector
3: PoE Range Extension switch.
4: Port 4 24V / 48V Poe selector switch
5: Port 5 24V / 48V Poe selector switch
PoE Standard: IEEE802.3af/at/PoE++
PoE Power out: Total max 120w
Network Protocol:
IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.3af/at/PoE++
AI PSE
PoE Standard: IEEE802.3af/at/PoE++
Port Specification: 10/100/1000BaseT（X）Auto
Transmission Mode: Store and Forward(full wire speed)
Bandwidth: 12Gbps
Packet Forwarding: 8.64Mpps
MAC Address: 2K
Buffer: 2.5M
Transmission Distance
10BASE-T：Cat3,4,5 UTP(≤250 meter)
100BASE-TX：Cat5 or later UTP(150 meter)
1000BASE-TX：Cat6 or later UTP(150 meter)
Speed:
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
Power Pin:
HiPoe port : 1245+ 4578-
48V PoE: 12+36-
24V PoE: 45+78-

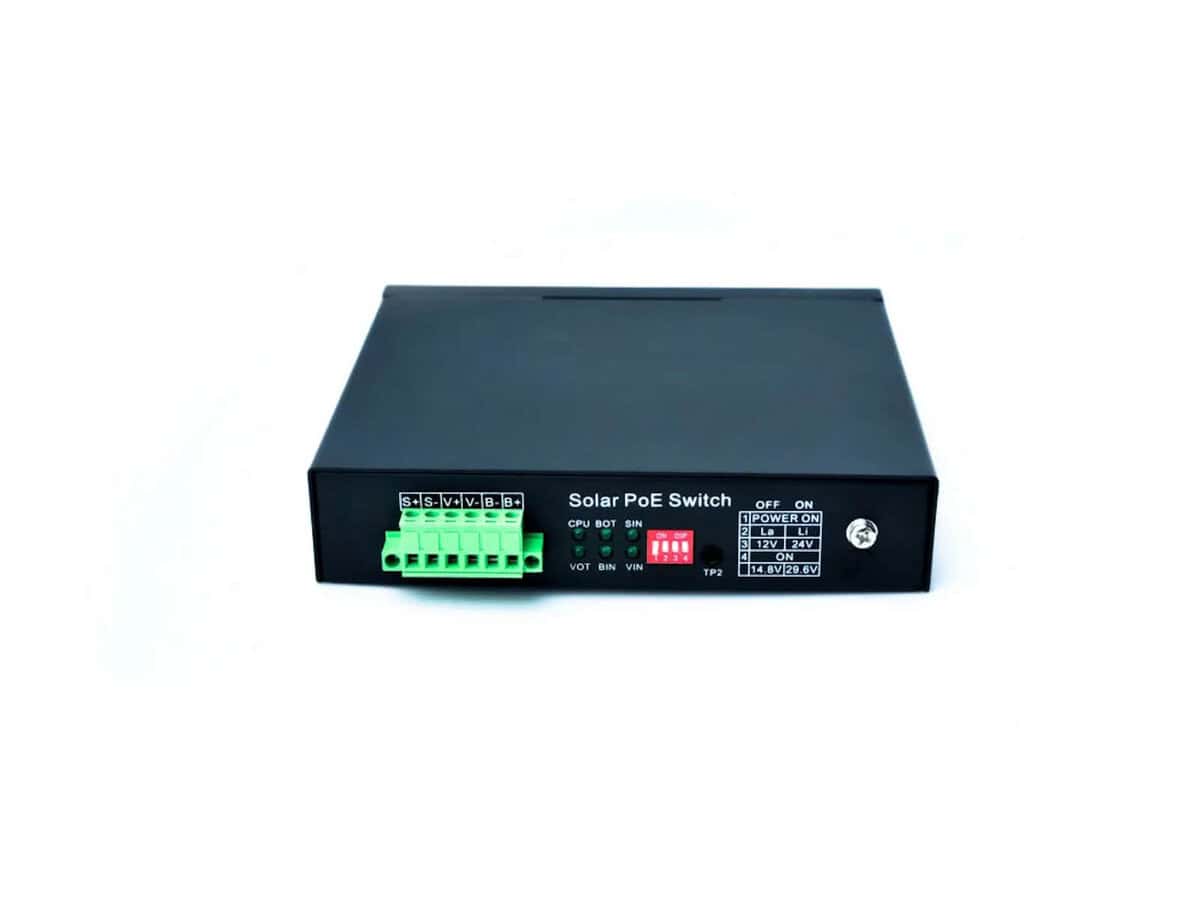

Charging function switch:
1: Power switch
2: Battery type selector switch
3: Battery voltage selector switch
4: 14.8/29.6v lithium switch
Power input:
Support 12V solar panel input(≤57V) or with12V batteries
Support 24V solar panel input(≤57V) or with 24V batteries
Charging function:
Integrated MPPT automatic charging, maximum efficiency 98%, maximum
charging current 15A
Integrated battery protection function
Automatic Battery Voltage Recognition
Integrated Lithium Battery Automatic Activation System
Integrated Low Volume Start-up Protection System
Battery:
Supporting 12V or 24V lead-acid batteries MAX200AH, 15A
Supporting 12.6V or 25.2V lithium batteries MAX200AH 50AH, 15A
Supporting 14.8V or 29.6V lithium batteries MAX 200AH, 15A
Power Output:
12V solar panel power in MAX 800W;
24V solar panel power in MAX 800W
DC panel power in MAX800W
LED Indicator:
PW: Power LED
BIN: Battery charging indicator
BOT: Battery discharging indicator
6:（SFP LED）
4A-5A:Port 4-5 48V PoE ON light
4B-5B:Port 4-5 24V PoE ON light
CPU:System operation LED
VOUT:PoE output VOL normal indicator
SIN:Solar panel input indicator
VIN:DC input indicator
