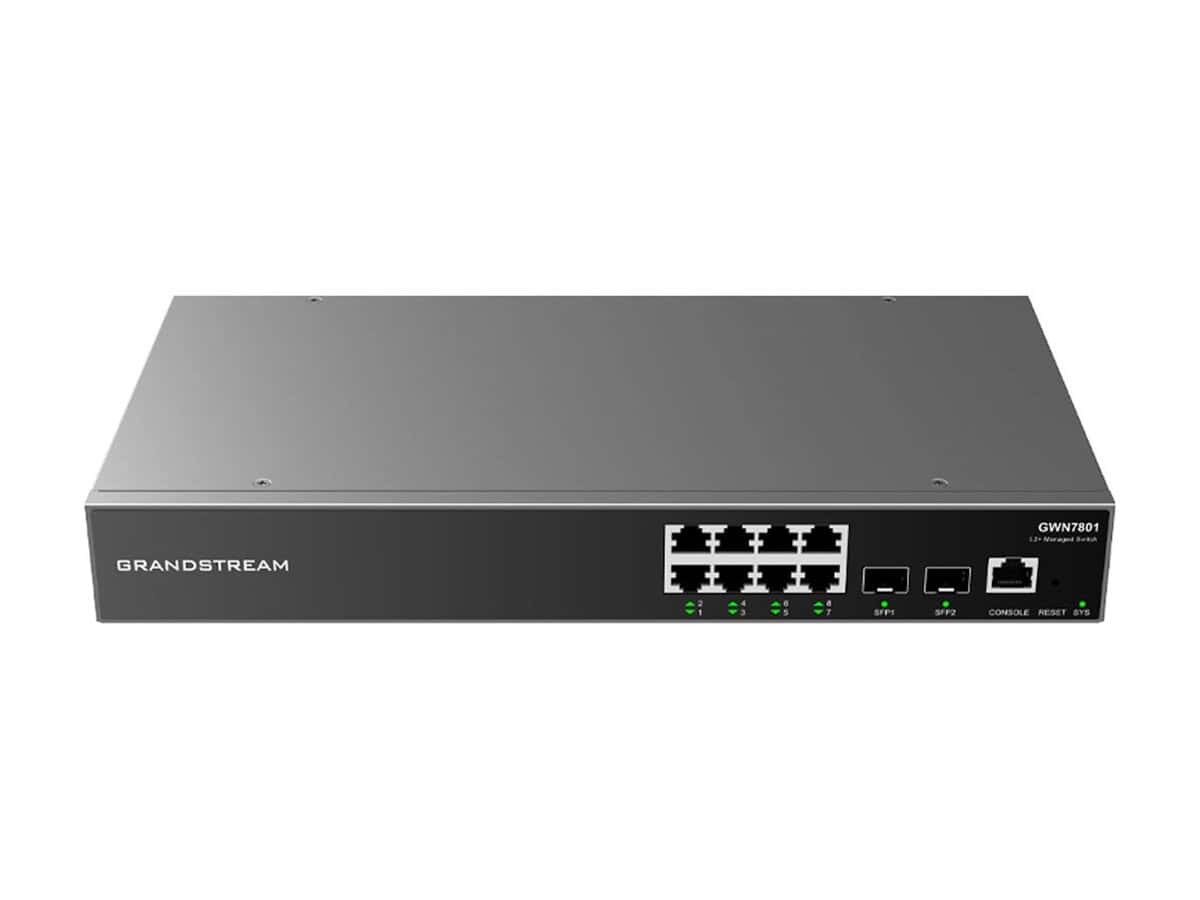

Grandstream Enterprise L2 8 port Managed GbE PoE 120W Switch
Grandstream

Grandstream Enterprise L2 8 port Managed GbE PoE 120W Switch

SKU GWN7801P

– Managed L2+ – Routing/switching capacity: 20 Gbit/s Multicast forwarding – 1500 – Rack mounting – AC Power supply included

R2,309.00
Including 15% VAT (R301.17). Tax invoice with every order.
In stock
  • Delivered by courier from R150.00, free on orders over R5,000.00.
  • Pay by card or Instant EFT through PayFast, or by bank EFT.
  • Checked with the NoPOS till. Ask us about setting it up.
Description Delivery and returns

Features – Grandstream 8 Port PoE Switch :

  • 8 x Gigabit Ethernet ports and 2 Gigabit SFP ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port
  • Supports deployment in IPv6 and IPv4 networks
  • Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Local Web UI to manage switch, GWN.Cloud and GWN Manager, Grandstreams cloud and on-premise Wi-Fi management platform
  • Built-in QoS allows for prioritization of network traffic.

Specifications:

  • Gigabit Ethernet Ports: 8
  • Gigabit SFP Ports: 2
  • Console Port: Yes
  • # of PoE Ports: 8
  • Integrated Power Supply: 150W
  • Max Output Power per PoE Port: 30W
  • Max Total PoE Output Power: 120W
  • PoE Standards: IEEE 802.3af/at
  • Multicast: IGMP Snooping, MLD Snooping, MVR
  • DHCP: DHCP server, DHCP relay, Option 82, 60,160 and 43
  • Maintenance: CPU & memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup & restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) & copper test
  • Mounting: Desktop/ Wall-Mount

Switching:

  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP (pending)
  • 8 link aggregation groups
  • Spanning tree, 16 instances for STP/RSTP/MSTP

QoS/ACL:

  • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
  • Port priority
  • Priority mapping
  • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
  • Traffic shaping
  • Rate limit
  • 1.5K ACL for Ethernet, IPv4 & IPv6

Security:

  • User hierarchical management and password protection, HTTPS, SSH, Telnet
  • 802.1X authentication
  • AAA authentication including RADIUS, TACACS+
  • Storm control
  • Port isolation, port security, sticky MAC
  • Filtering MAC address
  • IP source guard, DoS attack prevention, ARP inspection
  • DHCP Snooping
  • Loop protection including BPDU protection, root protection and loopback protection
  • Kensington Security Slot
