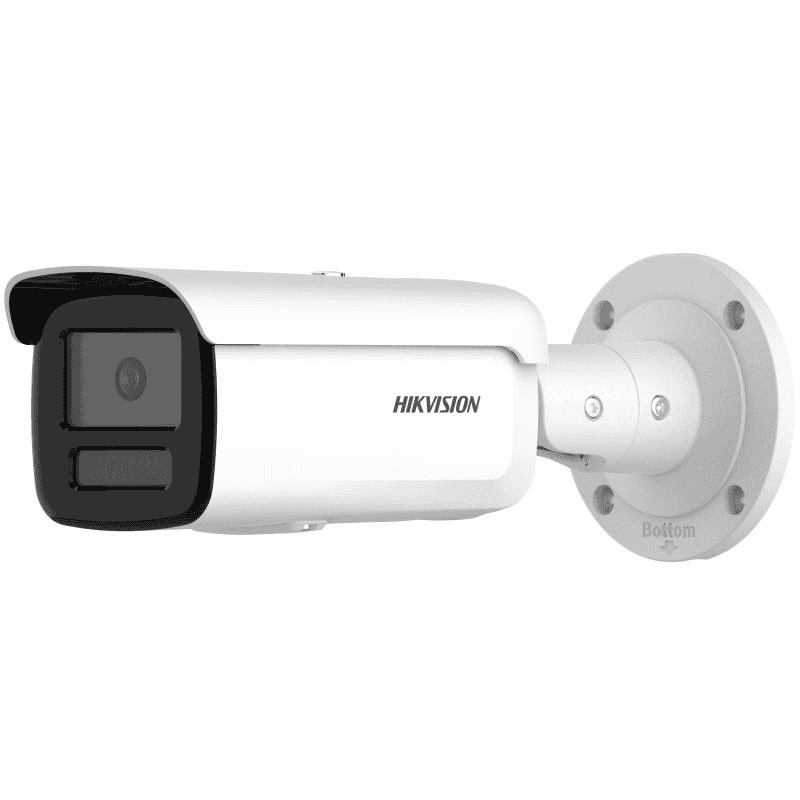

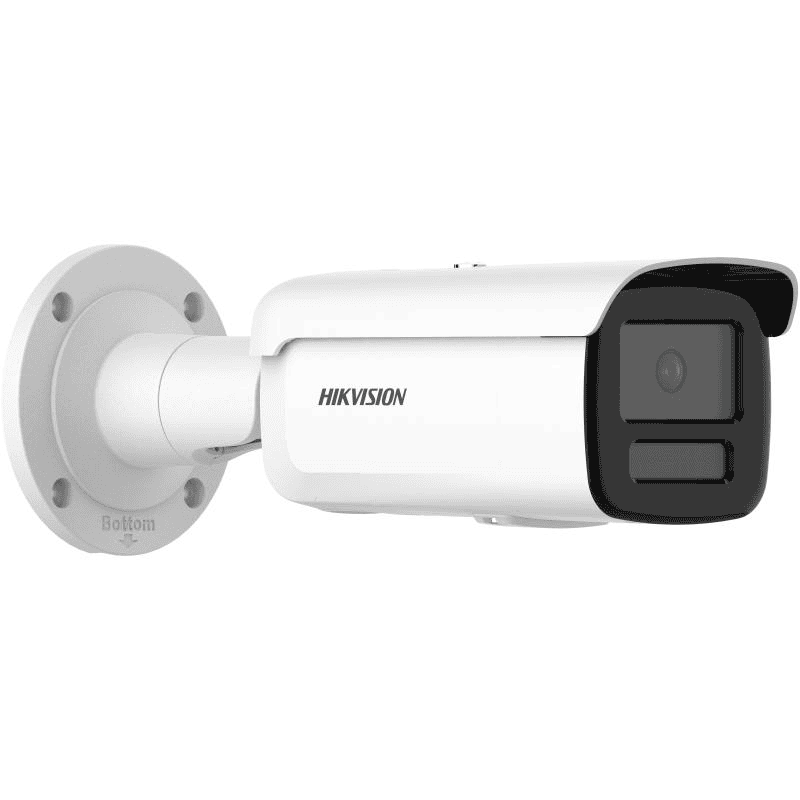

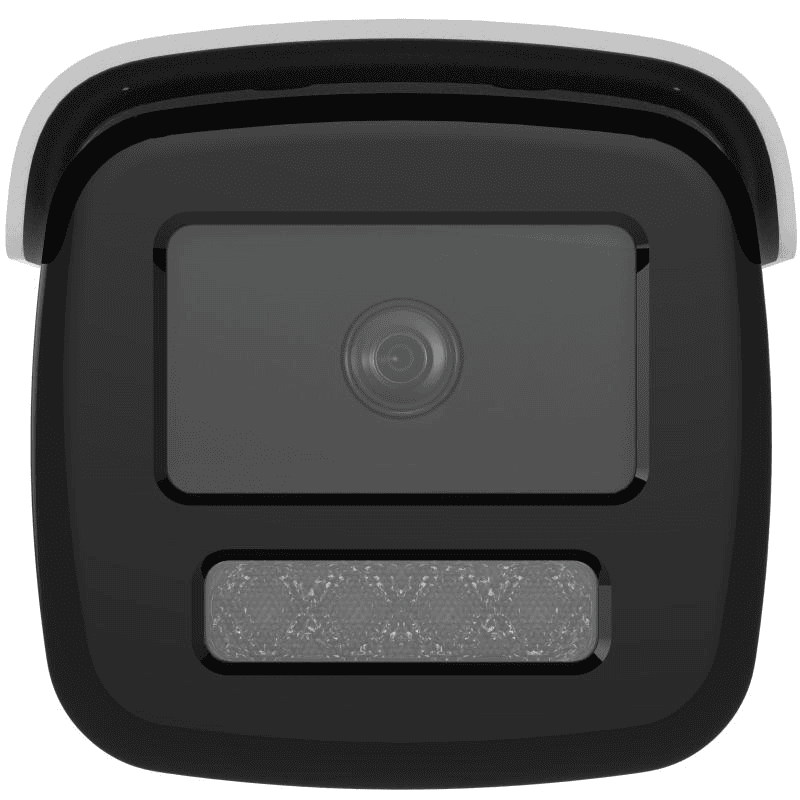

Hikvision 4 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera – DS-2CD2T47G2H-LI(2.8mm)(eF)

Camera

• Image Sensor 1/1.8″ Progressive Scan CMOS
• Max. Resolution 2688 × 1520
• Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type Fixed focal lens, 2.8 mm
• Focal Length & FOV 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
• Lens Mount M16
• Iris Type Fixed
• Aperture F1.0
• Depth of Field 2.8 mm: 2.5 m to ∞4 mm: 3.1 m to ∞

DORI

2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

Illuminator

• Supplement Light Type IR, White Light
• Supplement Light Range Up to 60 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

Video

• Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings.
• Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264,* Third stream is supported under certain settings.
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile,Main Profile,High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR,VBR
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, Web Sockets, SRTP, SFTP
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host Up to 32 users3 user levels: administrator, operator, and user
• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client iVMS-4200,Hik-Connect,Hik-Central
• Web Browser Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch Yes
• Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch Day,Night,Auto,Schedule
• Image Enhancement BLC,HLC,3D DNR
• SNR ≥ 52 dB
• Wide Dynamic Range (WDR) 130 dB
• Privacy Mask 4 programmable polygon privacy masks

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB
• Reset Key Yes

Event

• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
• Smart Event Scene change detection

Deep Learning Function

• Face Capture Yes
• Perimeter Protection Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human and vehicle)

General

• Power 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
• Material Front cover: Metal, body: Metal, bracket: Metal
• Dimension 286.7 mm × 93.3 mm × 91.2 mm (11.3″ × 3.7″ × 3.6″)
• Package Dimension 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
• Weight Approx. 1085 g (2.4 lb.)
• With Package Weight Approx. 1639 g (3.6 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
• Safety UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment CE-RoHS: 2011/65/EU
• Protection IP67: IEC 60529-2013
