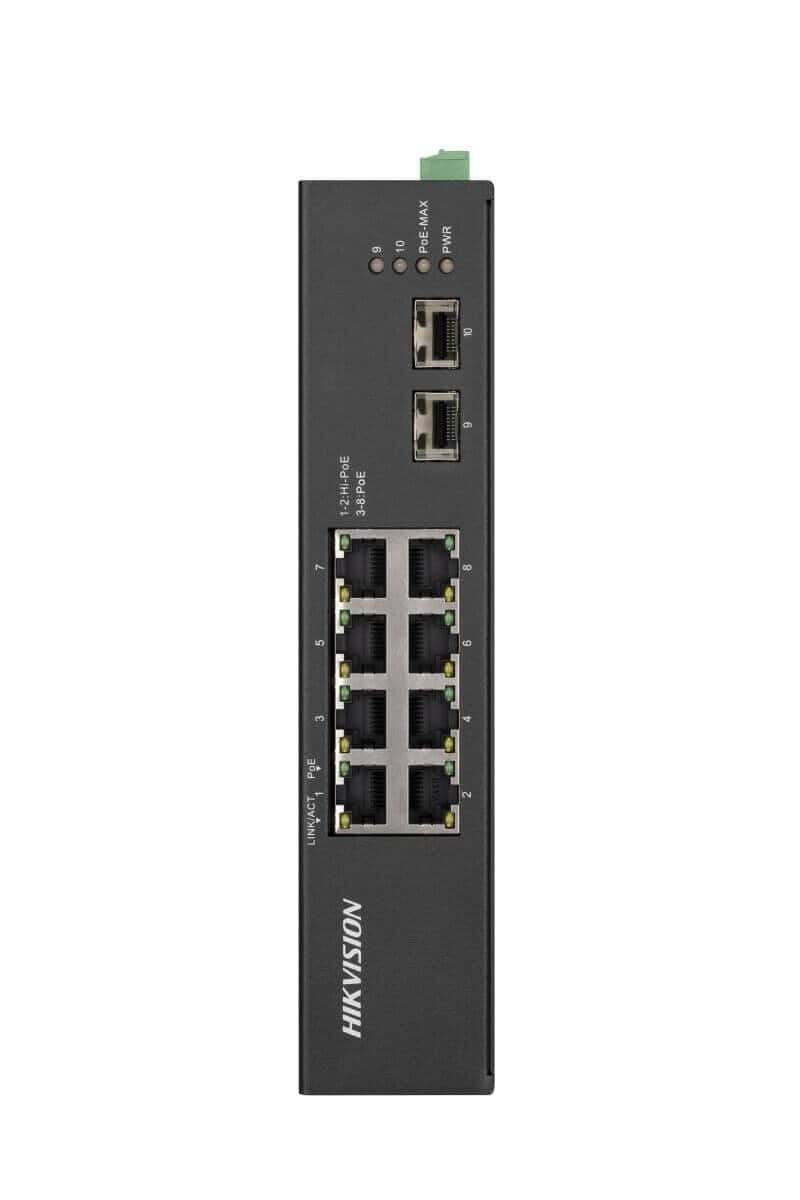

Hikvision network switch with multiple Ethernet ports
Hikvision

Hikvision 8 Port Gigabit Unmanaged Harsh POE Switch – DS-3T0510HP-E/HS

SKU DS-3T0510HP-E/HS

6 × gigabit PoE RJ45 port, 2 × gigabit Hi-PoE RJ45 port and 2 × gigabit SFP fiber optical port. IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output). IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard. 6 kV surge protection for PoE ports. Up to 300 m long-range transmission. PoE watchdog to auto detect and restart the cameras that do not respond. Port isolation to improve network security.…

R1,909.00
Including 15% VAT (R249.00). Tax invoice with every order.
In stock
  • Delivered by courier from R150.00, free on orders over R5,000.00.
  • Pay by card or Instant EFT through PayFast, or by bank EFT.
  • Checked with the NoPOS till. Ask us about setting it up.
Description Delivery and returns

General

  • Shell Metal material, fan-free design
  • Net Weight 0.585 kg (1.29 lb)
  • Gross Weight 1.11 kg (2.45 lb)
  • Dimensions (W × H × D) 197.0 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
  • Operating Temperature -30 °C to 65 °C (-22 °F to 149°F)
  • Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity 5% to 95% (no condensation)
  • Relative Humidity 5% to 95% (no condensation)
  • Power Supply 54VDC, 2.5A
  • Max. Power Consumption 120 W
  • Power Consumption In Idle 10 W
  • Installation Mode Desk-Mounted,Rail
  • Surge Protection 6 kV

Network Parameters

  • Ports 8 × Gigabit PoE port,2 × Gigabit fiber optical port
  • MAC Address Table 4 K
  • Switching Capacity 20 Gbps
  • Packet Forwarding Rate 14.88 Mpps
  • Internal Cache 1.5 Mbits

PoE Power Supply

  • PoE Standard IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
  • PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-),End-span: 1/2(-), 3/6(+)
  • PoE Port Hi-PoE: Ports 1 to 2 PoE: Ports 3 to 8
  • Max. Port Power Ports 1 and 2: 90 W Ports 3 to 8: 30 W
  • PoE Power Budget 110 W

Dialing Function

Long Range

  • Ports 7 to 8: up to 300 m
  • Long range performance may vary depend on camera model or cable condition.

Port Isolation

  • Ports 1 to 8: port isolation mode to improve network security.

PoE Watchdog

  • Ports 1 to 8: auto detect and restart the cameras that do not respond.

Approval

EMC
FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety
UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry
CE-RoHS (2011/65/EU)
