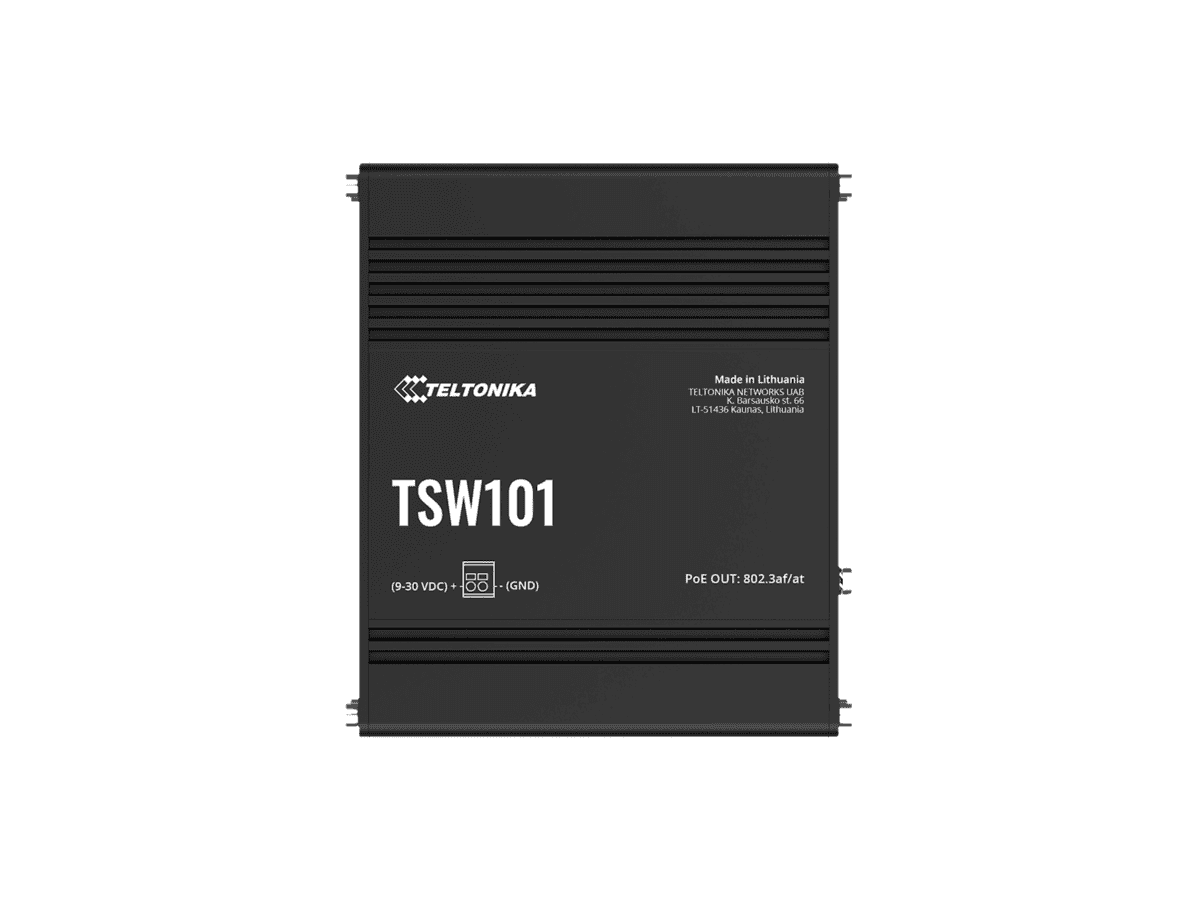

Teltonika TSW101 5-Port PoE Switch For Vechile

The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.

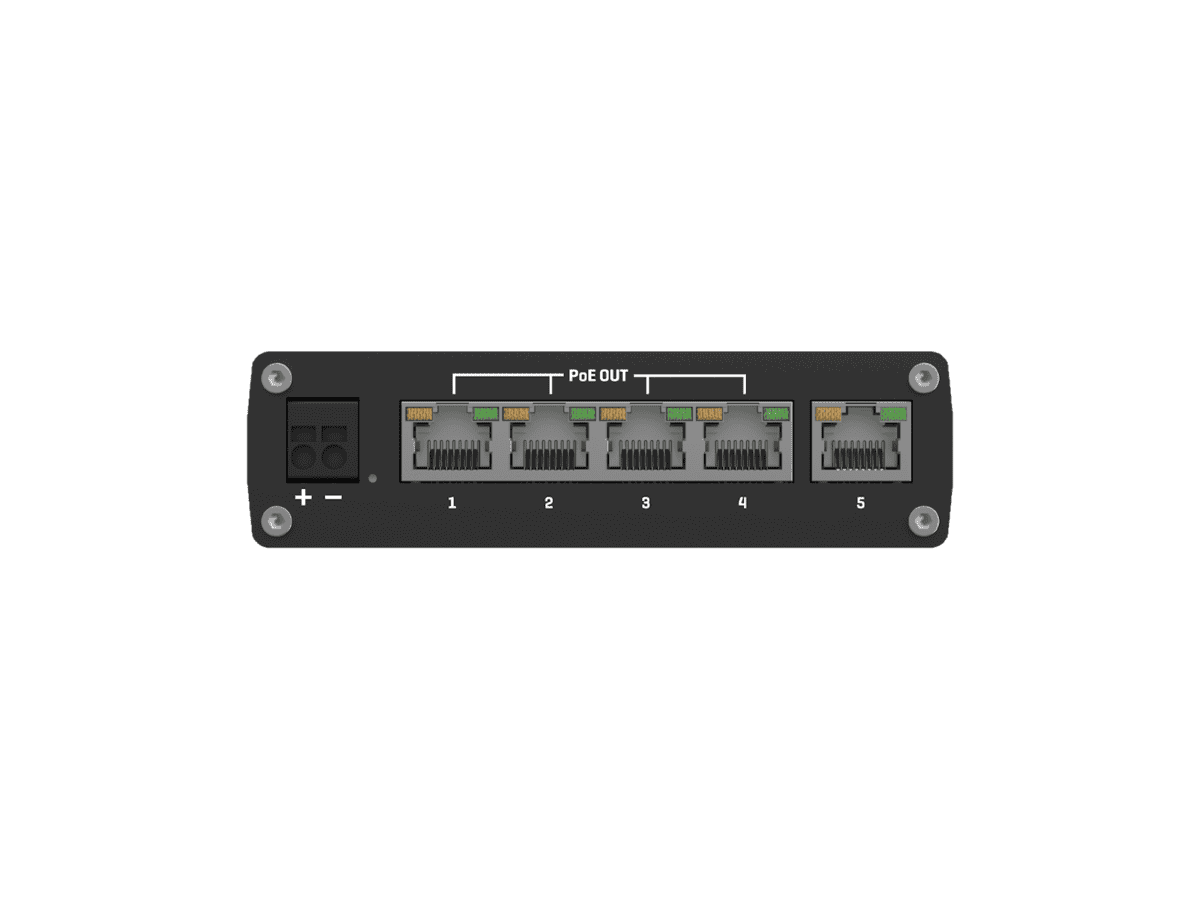

• Ethernet: 5 x RJ-45 ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
• PoE+ ports: Port 1 – 4
• PoE standards: IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
• PoE Max Power per Port (at PSE): 30 W
• Total PoE Power Budget (at PSE): 60 W
• Maximum Ethernet cable length: 100 m
• Power: 2-pin industrial DC power socket
• Input voltage range: 9 – 30 VDC
• PoE-Out input voltage range: 9 – 30 VDC
• Power consumption: Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
• PSU: 12 V or 24 V car battery-powered. No additional PSU is required.
• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
• Status LEDs: 1 x Power LED, 10 x ETH status LEDs
• Power: 1 x 2-pin industrial DC power socket

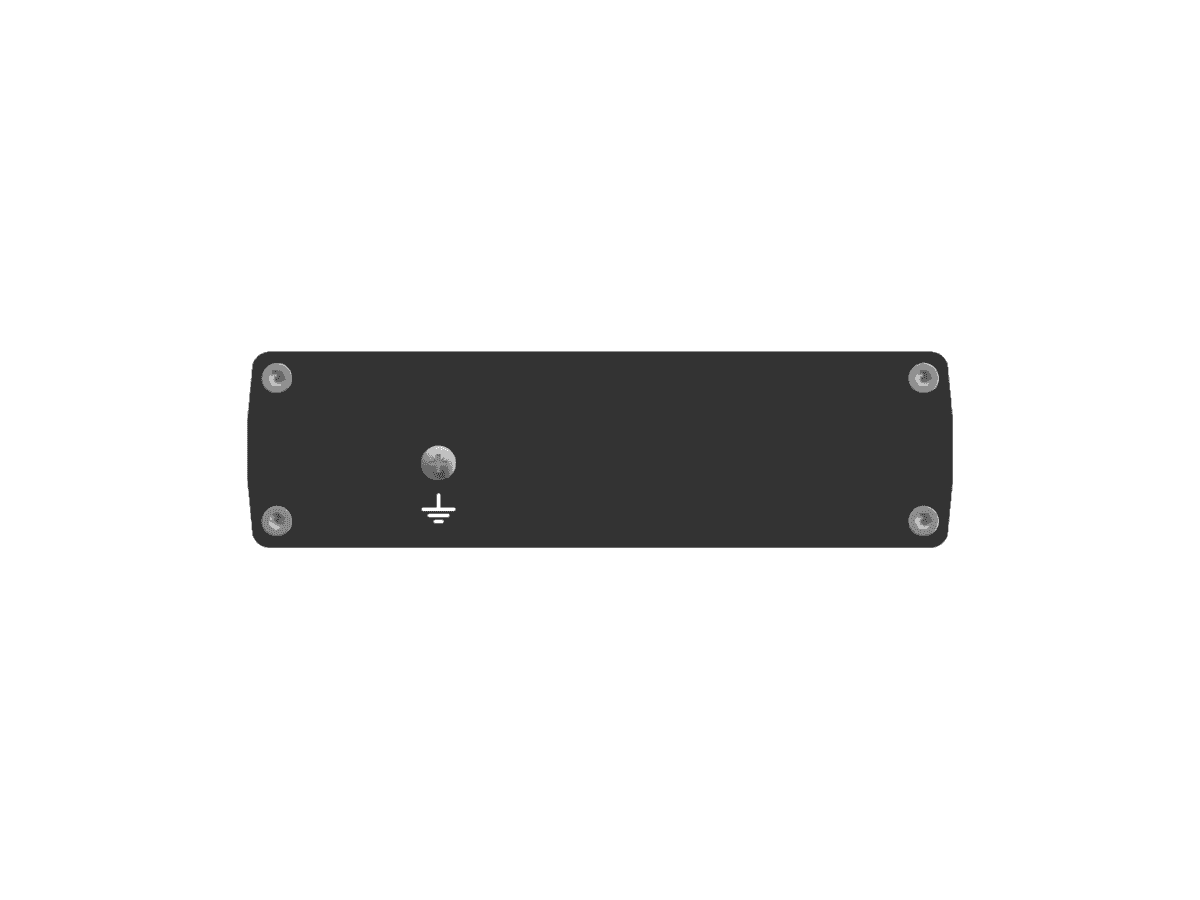

• Other: 1 x Grounding screw
