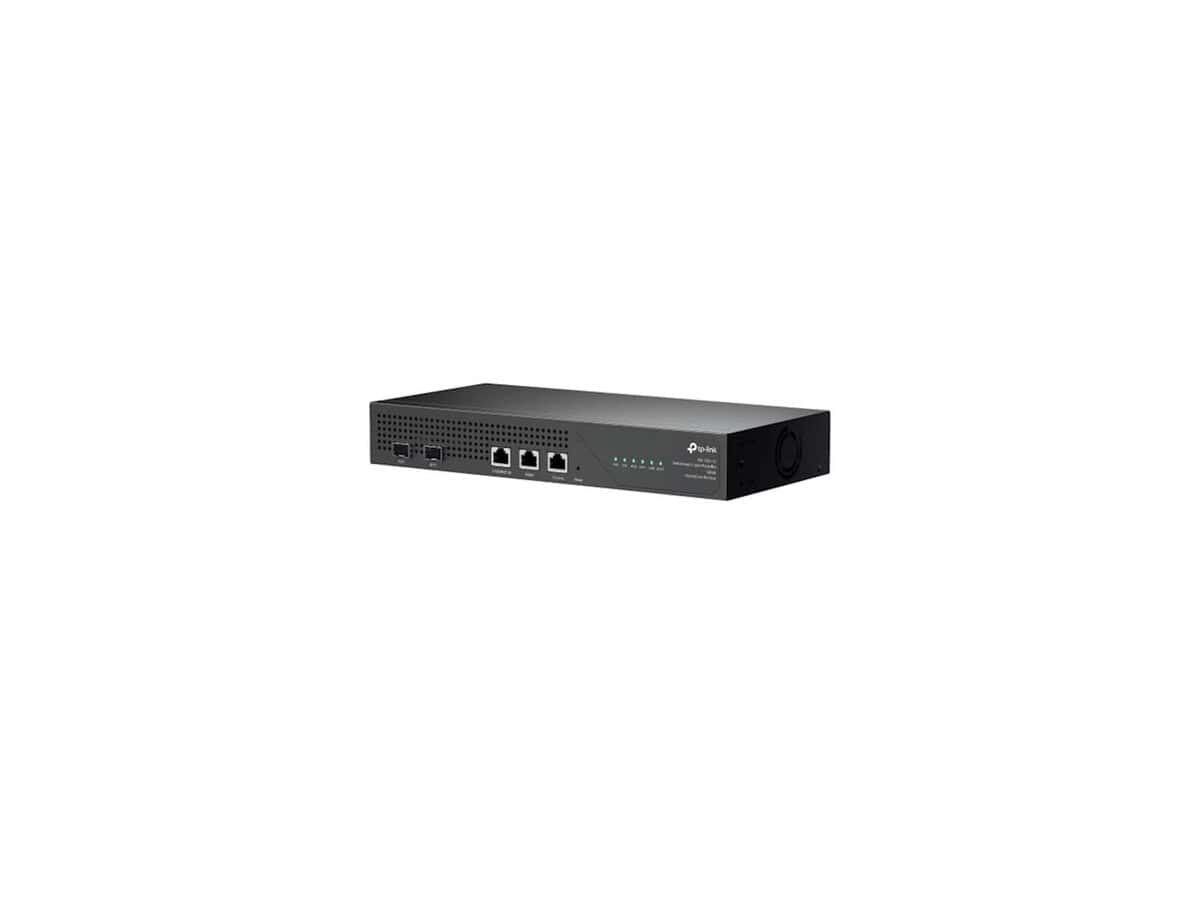

TP-Link 1-port GPON OLT

• GPON Port: Supports 1:128 splitting ratio—up to 128 ONTs by one device—perfect for small businesses and home offices.
• High-Speed Uplink Ports: 1× 10G SFP+ port and 1× 2.5 GbE uplink port offer high-bandwidth connectivity.
• Flexible Deployment: Supports both DC and 802.3at PoE power supplies to fit various application scenarios.
• Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirements for different applications.
• Centralized Management: Supports management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

HARDWARE FEATURES
Interface
-1× GPON Port
-1× 10 Gbps SFP+ Uplink Port
-1× 10/100/1000/2500 Mbps RJ45 Uplink Port
-1× RJ45 Console Port
-1× RJ45 MGMT Port

Button: Reset Button

Dimensions ( W x D x H ): 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

Power Consumption: Max. 17W

Power Supply
-Dual Power Supplies: DC and 802.3at PoE
-DC Adapter: 12.0V/2.5A,
-802.3at PoE: 42.5~57V/0.6A

SOFTWARE FEATURES
DHCP
-DHCP Server
-DHCP Relay

Security
-ACL (IPv4/IPv6)
-DHCP Filter
-Port Security
-Access Security

OMCI
-Standard OMCI Management Supported

ONU Authentication
-ONU Auto Authentication

ONU Security
-Rouge ONU Detection and Isolation
-Uplink and Downlink Data Encryption

Multi-Service
-Multi-Service Traffic Identify and Rate Limit

QoS
-IEEE 802.1p/DSCP QoS
-Voice VLAN
-Auto VoIP
Routing Static Routing

Mulitcast
-IGMP Snooping
-MLD Snooping

Centralized Management
-Large-Scale Devices Management
-OLT Batch Configure, Upgrade, Reboot
-Multi-Site Management
-Intelligent Network Monitoring
-Real-time Network Overview

GPON port attribute

Transmission distance
-60 KM

Data rate
-Downstream: 2.5 Gbps
-Upstream: 1.25 Gbps

Wavelength
-Tx: 1490 nm
-Rx: 1310 nm

Max. Splitting Ratio
-1:128
