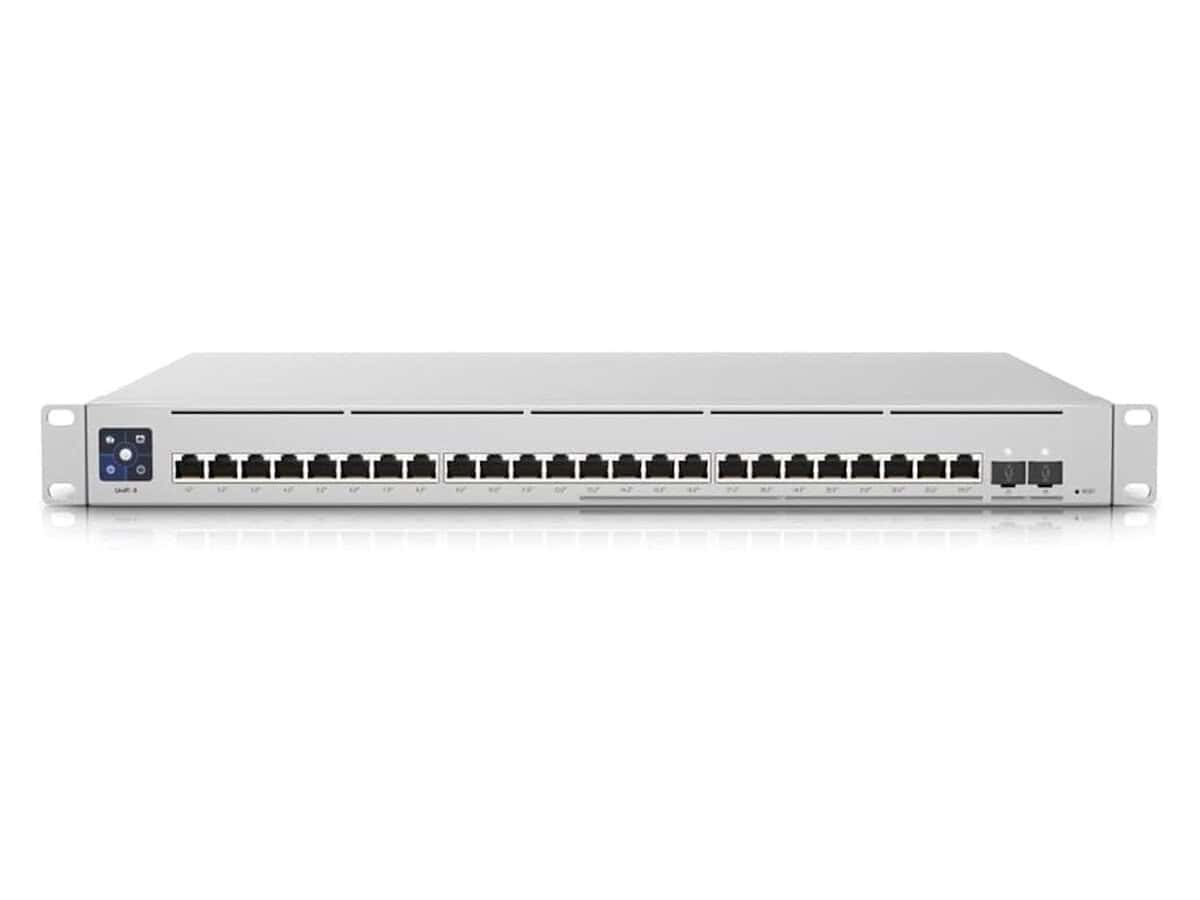

Ubiquiti UniFi Enterprise 24 Port Switch

Technical Specification

• Product: Ubiquiti Switch Enterprise 24 PoE
• Networking interface:
• 12x 10/100/1,000 MbE RJ45 ports
• 12x 100/1,000/2,500 MbE RJ45 ports
• Management interface: Ethernet In-Band
• SFP+ interface: 2x 10G SFP+ ports
• PoE interface: 24x PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total non-blocking throughput: 62 Gbps
• Switching capacity: 124 Gbps
• Forwarding rate: 92.25 Mpps
• Max. power consumption: 550W
• Power method:
• 1x Universal AC input, 100—240V AC, 8.5A Max., 50/60 Hz
• 1x USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
• Power supply: AC/DC, internal, 550W
• Max. PoE+ wattage per port by PSE: 34.2W
• PoE budget: 400W
• Voltage range PoE mode: 44— 57V
• Voltage range PoE+ mode: 50—57V
• Services: SMB Layer 3 PoE GbE switch
• ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
• LCM display:
• 1x 1.3″ LCM colour touchscreen
• Bootup animation: bootup in progress
• Firmware upgrade icon: firmware upgrading
