Ubiquiti UniFi Mission-Critical Switch 120W PoE
Ubiquiti UniFi Mission-Critical Switch 120W PoEUbiquiti UniFi Mission-Critical Switch 120W PoEUbiquiti UniFi Mission-Critical Switch 120W PoE
Ubiquiti

Ubiquiti UniFi Mission-Critical Switch 120W PoE

SKU USW-Mission-Critical

1x GbE LAN, 4x GbE PoE+, 4x GbE PoE++, 368Wh Battery backup power system

R22,819.00
Including 15% VAT (R2,976.39). Tax invoice with every order.
Low stock Only 2 left
  • Delivered by courier from R150.00, free on orders over R5,000.00.
  • Pay by card or Instant EFT through PayFast, or by bank EFT.
  • Checked with the NoPOS till. Ask us about setting it up.
Description Delivery and returns

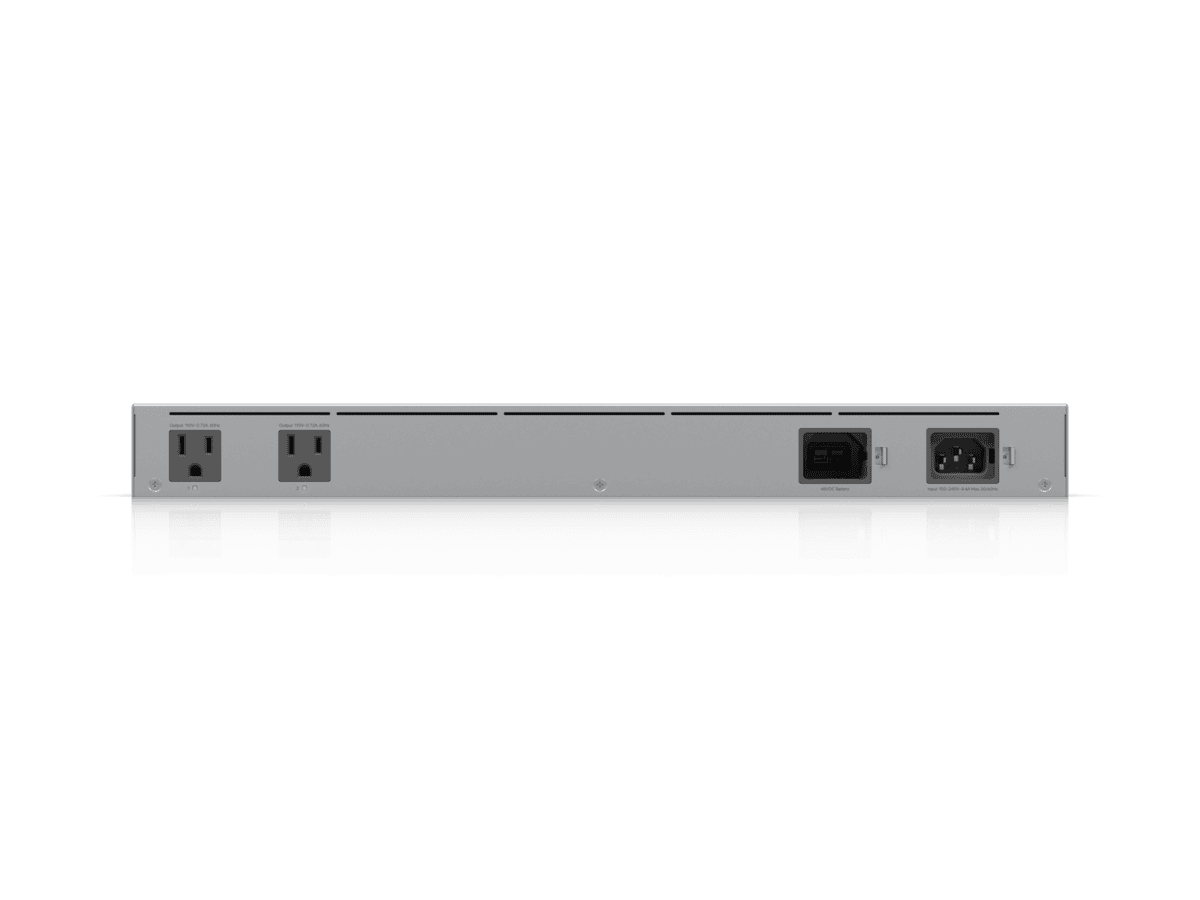

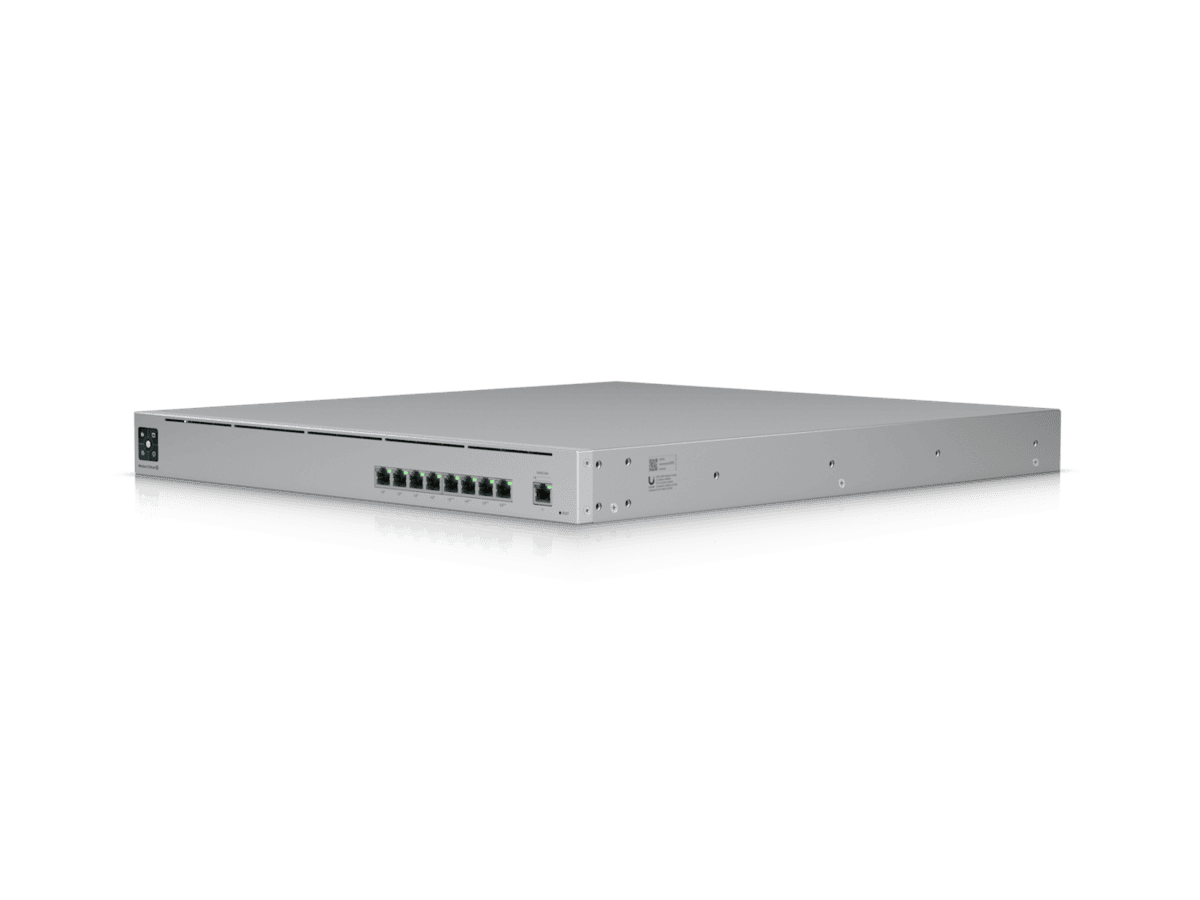

The Ubiquiti UniFi Mission Critical Switch is a Layer 2 PoE switch featuring an integrated 368Wh lithium-ion battery backup system. It is designed to maintain network operation for your most important devices during a power failure. The switch provides a total PoE budget of 120W, distributed across four Gigabit PoE+ and four Gigabit PoE++ ports, making it suitable for powering access points, IP cameras, and VoIP phones. In addition to its networking ports, it includes two 230V AC outputs, allowing it to function as a complete uninterruptible power supply (UPS) for other critical equipment. This ensures your essential infrastructure remains online when mains power is unavailable.

  • Dimensions: 442 x 480 x 44 mm
  • Port Layout: 1 GbE RJ45, 9 (4 PoE+; 4 PoE++) (1G/100M/10M)
  • Max. PoE Output: Up to PoE++
  • Total PoE Availability: 120W
  • Redundancy: Battery Power Backup
  • Layer 3: Yes
  • Form Factor: Rack mount (1U)
  • Performance
  • Switching Capacity: 18 Gbps
  • Total Non-Blocking Throughput: 9 Gbps
  • Forwarding Rate: 13 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 8,000
  • Packet Buffer Size: 0.5 MB
  • Access Lists: IPv4 – 128
  • MAC – 128
  • Hardware
  • PoE Ports: PoE+ – 4
  • PoE++ – 4
  • Max. PoE Wattage per Port by PSE: PoE+ – 32W
  • PoE++ – 64W
  • Max. Power Consumption: 50W (Excluding PoE Output), 240W (Including PoE Output and AC Output)
  • Power Method: Universal input, 100—240V AC, 50/60 Hz, External battery input, 48V DC
  • Power Input Method: AC input, DC input (Backup)
  • Power Supply: AC/DC, internal, 240W
  • Supported Voltage Range: 100—240V AC
  • Management: Ethernet, AR
  • Heat Dissipation (Excluding PoE Output): 170.6 BTU/hr
  • Weight: Without mount: 9 kg (19.9 lb), With mount: 9.2 kg (20.3 lb)
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • Supported Rack Depth: 482.6 mm (19″) four-post racks, Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
  • LCM Display: 1.3″ touchscreen
